The xScape50 class delivers wide-area Earth observation from 1U-class CubeSats. Offered as MultiScape50 CIS (7-band multispectral), HyperScape50 (hyperspectral, up to 32 simultaneous bands), or TriScape50 (RGB with HD video).

Approx. 30 m GSD and 120 km swath at 500 km

Sentinel-2-like VNIR band set with digital TDI

1U+ form factor, under 0.5 kg

Flight heritage since 2024

The xScape100 class is the workhorse of the range, with dozens of units flown since 2021. Offered as MultiScape100 CIS (PAN plus 7-band multispectral), HyperScape100 (hyperspectral, up to 32 simultaneous bands), or TriScape100 (RGB snapshot and video).

4.75 m GSD and 19.4 km swath at 500 km

95 mm aperture; 3U+ form factor, approx. 1.2 kg

Push-broom with digital TDI, or global-shutter snapshot (TriScape)

SpaceWire, LVDS, and CAN interfaces; 128 GB onboard storage

The xScape200 class brings sub-2 m imaging to 12U-class and ESPA-class spacecraft. Offered as MultiScape200 CIS (PAN plus 7-band multispectral) or TriScape200 (65 MP RGB snapshot and video), and as the Dual Use (DU) variant with US-supplied detector and enhanced thermal stability.

1.5 m GSD and 14 km swath at 500 km

190 mm aperture; 12U+ form factor

Qualified to ECSS and GEVS standards; in serial production

Optional onboard CCSDS compression and KP Labs Leopard DPU pairing

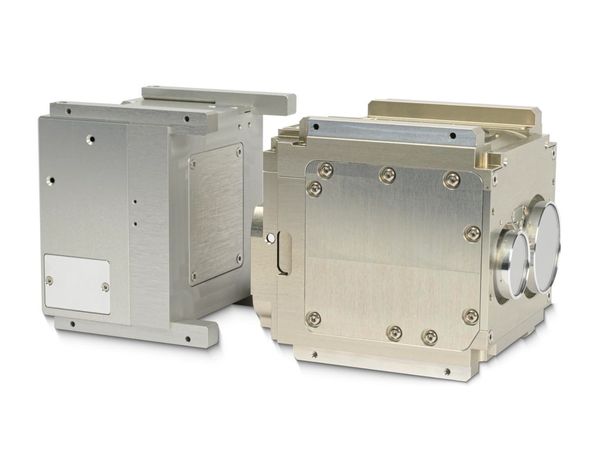

Spectra-90 is a compact uncooled extended-InGaAs shortwave infrared camera for small satellites, available in Mono and Dual aperture configurations. Customizable band placement within the SWIR range supports early wildfire detection, soil moisture, and industrial monitoring.

Four SWIR bands (945, 1030, 1380, 1610 nm)

11 m GSD at 500 km; 14 km swath (Mono) or 25 km (Dual)

Approx. 3 kg (Mono) / 5.5 kg (Dual); about 6 W

SpaceWire interface (PUS-C); expected first flight 2027

Ignite-70 is a compact uncooled multispectral thermal infrared imager for early wildfire detection, active fire monitoring, urban heat, and flare monitoring, with real-time Level-2 products generated onboard.

PAN 10 to 12.5 um, with optional TIR-1 and TIR-2 split bands

85 m GSD and 87 km swath at 500 km

1.8 kg, 10 W, 95 x 95 x 160 mm

3-year design life
